Optical Encoder System
An optical encoder system is a device used for precise measurement of position or speed, and it is widely applied in fields such as industrial automation, machine tools, and semiconductor manufacturing. It detects displacement or position changes by reading precise optical patterns on a scale or disc. The system consists of a readhead and a scale or disc, where the light source and sensor within the readhead detect changes in light waveform from the scale or disc and convert them into electrical signals. The scale typically made of stainless steel or nickel with optical patterns etched on it, providing accurate position information. Ultimately, the signal processing unit converts these electrical signals into precise displacement data. Due to its high resolution and accurate feedback capabilities, optical encoder systems excel in fields that require precise motion control.
ABI80 Series Optical Incremental Readhead
Download
Datasheet
3D file
The ABI80 series is a miniature optical readhead (20.57 x 12.70 x 7.50 mm) designed for short-stroke linear and rotary motion, making it ideal for compact systems. Utilizing non-contact optical scanning technology, it supports SinCos 1Vpp and differential TTL outputs with a resolution of up to 0.2 μm. Integrated automatic gain control (AGC) ensures stable and reliable signal performance.
In terms of speed performance, the SinCos 1Vpp mode enables linear motion speeds of up to 8 m/s and rotary motion up to 3491 RPM (LPR 1650). The differential TTL mode offers various interpolation factors to meet high dynamic precision requirements. Its ultra-compact design allows for easy installation, while the IP40 protection rating and signal indicator LEDs make setup more intuitive.
The ABI80 is compatible with the SI80-NI linear scale and RI80-SSN rotary disc, providing a high-precision, high-speed measurement solution for CNC machines, precision automation, and motion control systems, making it an ideal choice for compact devices.
ABI80 Specifications
ABI80 Compatible Scale/Disc
ABI801 Series Optical Incremental Readhead
Download
Datasheet
3D file
The ABI801 series is a compact optical readhead designed for long-stroke linear motion, supporting differential TTL output with a resolution of up to 0.2 μm. It features a built-in Hall sensor for multiple zero-position selections, providing greater flexibility in positioning. Utilizing non-contact optical scanning technology and automatic gain control (AGC), it ensures high-precision measurement and enhanced signal stability.
In terms of speed performance, the ABI801 reaches speeds of up to 8 m/s at a 1.0 µm resolution and up to 3 m/s at a minimum resolution of 0.2 µm. The readhead is equipped with green, amber, and red LED indicators for intuitive signal status display and supports optical zero-position indication, simplifying system calibration and installation.
The ABI801 is compatible with the SI80-SS linear scale, making it ideal for CNC machines, automated inspection equipment, and high-precision motion control applications. With an IP40 protection rating and an optimized mechanical design, it ensures durability and reliability, making it a perfect choice for industrial-grade precision measurement.
ABI801 Specifications
ABI801 Compatible Scale/Disc
SI80 Series Incremental Scale
Download
Datasheet
3D file
The SI80 series incremental scale is the ideal choice for linear motion applications that demand high precision and reliability, designed to work with optical scanning readheads. Whether you opt for the lightweight nickel version (SI80-NI) or the more durable stainless steel version (SI80-SS), this series exhibits exceptional durability and outstanding corrosion resistance. Its low thermal expansion coefficient and 80 µm grating period ensure minimal thermal expansion under various environmental conditions, maintaining excellent measurement accuracy of ±15 μm/m.
The SI80 is suitable for a wide range of applications, with lengths of up to 3000 mm, and it comes equipped with scale applicator tool to ensure an accurate assembly process. Whether you need to maintain measurement precision in extreme conditions or are looking for a reliable incremental measurement system solution, the SI80 series delivers unparalleled performance.
SI80 Specifications

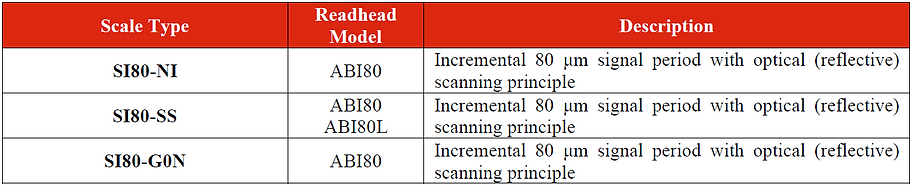

SI80 Compatible Readhead
SI80 Accessories List
RI80 Series Incremental Disc
Download
Datasheet
3D file
The RI80 series incremental disc is designed to provide high-precision performance in rotating incremental systems, compatible with optical scanning readheads. Made from robust stainless steel, it maintains exceptional accuracy even in corrosive environments. With a low thermal expansion coefficient of 11 ppm/°C, the RI80 ensures consistent performance across a wide temperature range, making it particularly suitable for harsh industrial applications.
The RI80 disc is available in various sizes with an 80 µm grating period and can be customized to meet specific requirements for turns per revolution. Its durability and precision make it a reliable choice for applications that require high accuracy and long-term stability.
Choose the RI80 series to meet your rotating incremental needs and experience unparalleled performance and reliability with every turn.
RI80 Specifications
RI80 Compatible Readhead

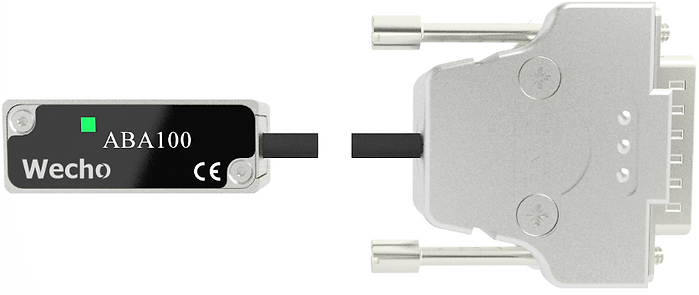

ABA100 Series Optical Absolute Readhead
Download
Datasheet
3D file
The ABA100 series optical encoder utilizes non-contact optical scanning technology and supports BiSS C (unidirectional), EnDat 2.2 (bidirectional), and Mitsubishi (Mit03-2) communication protocols, offering resolutions as high as 50 nm for high-precision applications. Its compact design makes it ideal for space-constrained systems, while the built-in automatic gain control (AGC) ensures stable and reliable signal performance.
In terms of speed performance, the ABA100 series supports linear motion speeds of up to 10 m/s, making it suitable for high-speed and high-dynamic accuracy applications. With an IP40 protection rating and built-in status indicator lights, installation and calibration are more convenient, providing real-time signal feedback (Green: optimal signal, Yellow: warning, Red: error).
The ABA100 is compatible with SA100-G0 Robax glass scales and SA100-SS stainless steel scales, making it widely applicable in CNC machines, precision automation, and motion control systems. It delivers high-precision, high-stability measurement solutions for demanding industrial applications.
ABA100 Specifications
ABA100 Compatible Scale/Disc
SA100 Series Absolute Scale
Download
Datasheet
3D file
The SA100 series is a high-precision absolute scale, specifically designed to match optical scanning absolute readheads, suitable for precise displacement measurement applications. Its standout feature is the robax glass substrate, which boasts an ultra-low thermal expansion coefficient of nearly 0 ppm/°C, ensuring exceptional measurement accuracy even in fluctuating temperature environments, with a precision of up to ±5 μm/m. The stainless steel version of the scale offers a thermal expansion coefficient of 11 ppm/°C, providing good durability and corrosion resistance.
The SA100 is available in both robax glass and stainless steel substrate materials to meet diverse environmental needs, with the robax glass being particularly suitable for applications that are highly sensitive to temperature variations. The grating period is 100 µm, with lengths of up to 1520 mm (Robax glass) and 6000 mm (Stainless steel).
Choose the SA100 series to meet your absolute measurement needs and experience exceptional precision and stability with every displacement.
SA100 Specifications
SA100 Compatible Readhead
SA100 Accessories List
